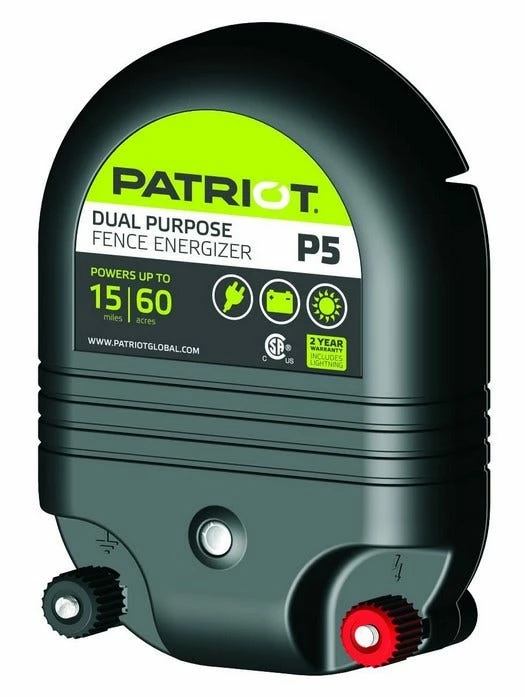

Patriot P5 Dual-Purpose Fence Energizer – 803401 – Electric Fencing

Ideal unit for smaller applications, strip-grazing and portable fencing.

Product Features:

• Multiple power options – Dual-Purpose feature allows energizer to run on 110 V plug or 12 V (deep cycle, marine type) battery*.
• Solar compatible – Solar panel* charges a 12 V (deep cycle, marine type) battery* to power the Patriot Dual Purpose energizer and fence line. Ideal for remote areas where AC (110 V) power is not available.
• Low impedance energizer – Designed to deliver power to the end of the fence even under heavy load e.g. foliage, undergrowth.
• LED indicator – LED indicates pulses when energizer is working.
• Robust design – Easy, safe installation and good wire connection.
• Easy mounting options – Unique, clip-on wire feature allows mounting on fence wire.
• 2 year full replacement manufacturer warranty (including lightning)

Suitable For:

• Cattle
• Horses
• Deer
• Pigs
• Sheep
• Goats
• Dogs
• Rabbits
• Squirrels
• Chickens



Specifications

Distance Range (miles)	15 miles
Distance Range (acres)	60 acres
Peak Output Energy (up to)	0.5 J
Peak Stored Energy (up to)	0.7 J
Output Voltage (up to)	8.0 kV max, 4.5 kV @ 500 Ω
Current Consumption	45 mA
Recommended Solar Panel	10 watt
